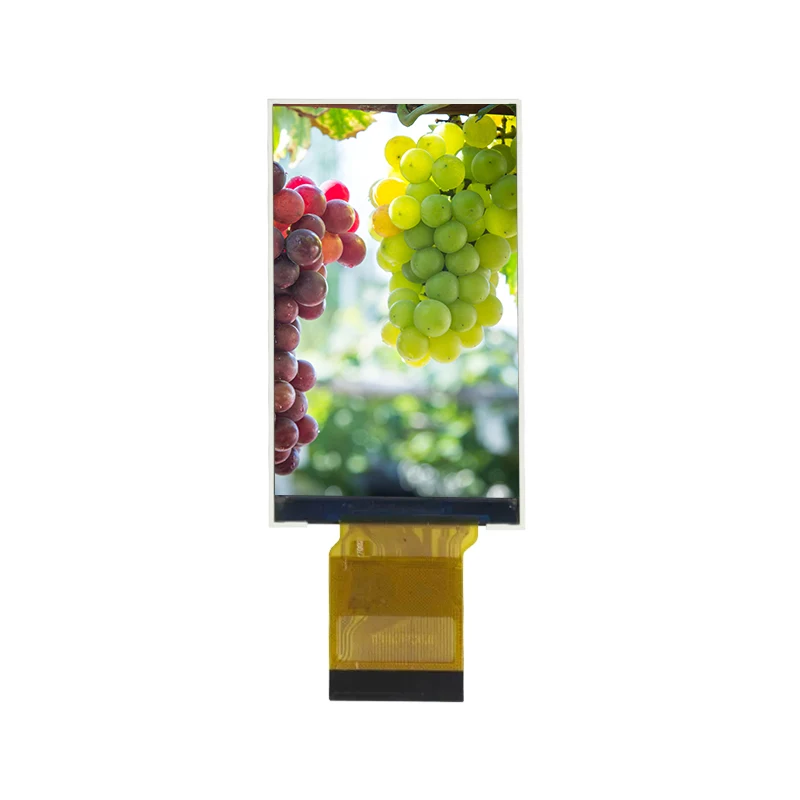

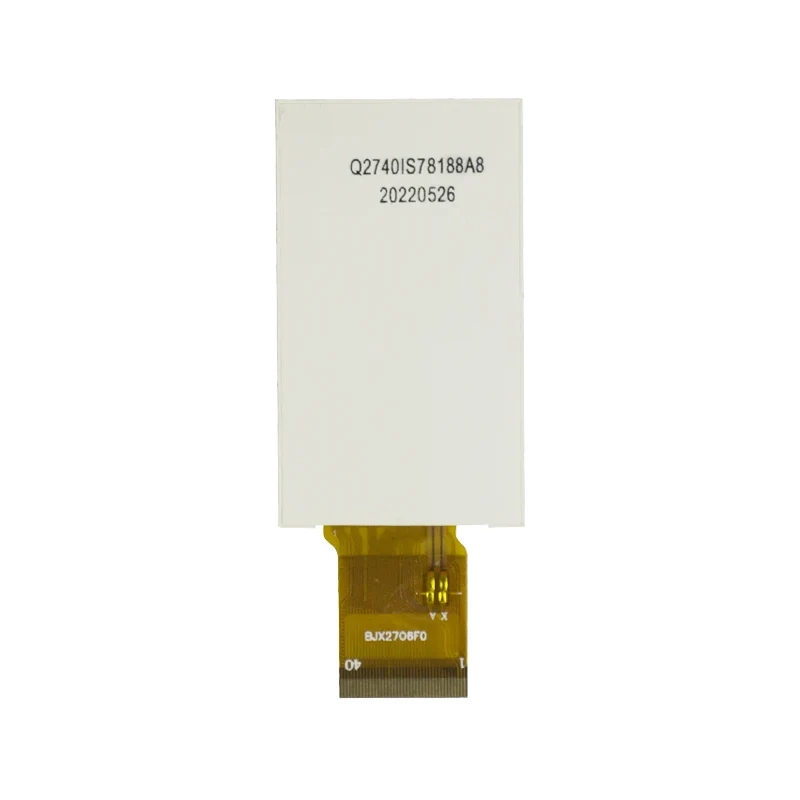

3,92 'Wide Temp IPS TFT LCD screen OMNIBUS

Generalis specifications

Module type

3.92-inch tft (a-si)

-

-

Display resolutio

CCCXX × CCCXX elementa

-

-

Type interface

MCU / spi

-

-

Color profundum

16.7m colorum

-

-

ICT

St7796

-

-

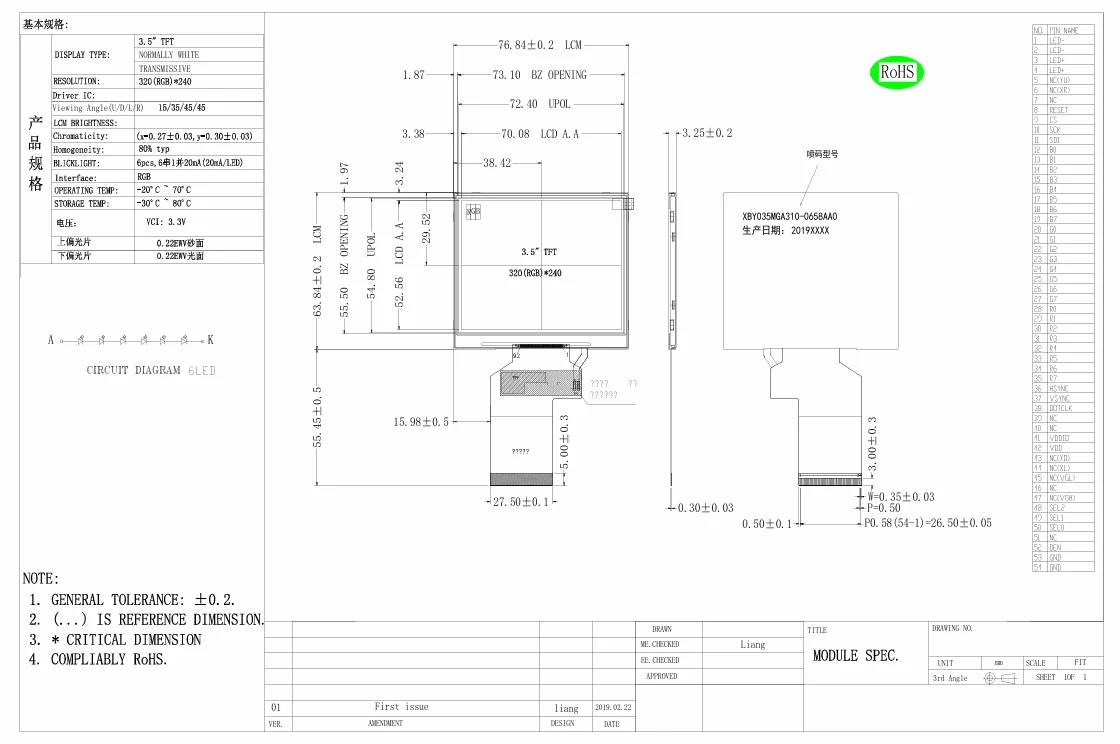

Mechanica dimensiones

76.72 × 74.86 × 2.1 mm

-

-

ARGENTUM

71,13 × 69.82 mm

-

-

Operating temperatus

-20 ° C ad + LXX ° C ℃

-

-

Storage temperatus

-30 ° C ad LXXX ° C

-

-

Electrica specifications

Parameter

Min

Type

Max

Ratio voltage (VDD)

2.5 V

2.8 V

3,6 V

Tft porta in voltage (VGH)

X V

XII V

XIV V

Tft porta off voltage (VGL)

-14 V

-12 V

-10 V

Reliability probat

Test item

Condiciones

Summus temperatus repono

LXXX ° C, CCXL horis

Minimum temperatus repono

-30 ° C, CCXL horis

Tempus & High Temptions (Operational)

LX ° C, XC% RH, CCXL horis
