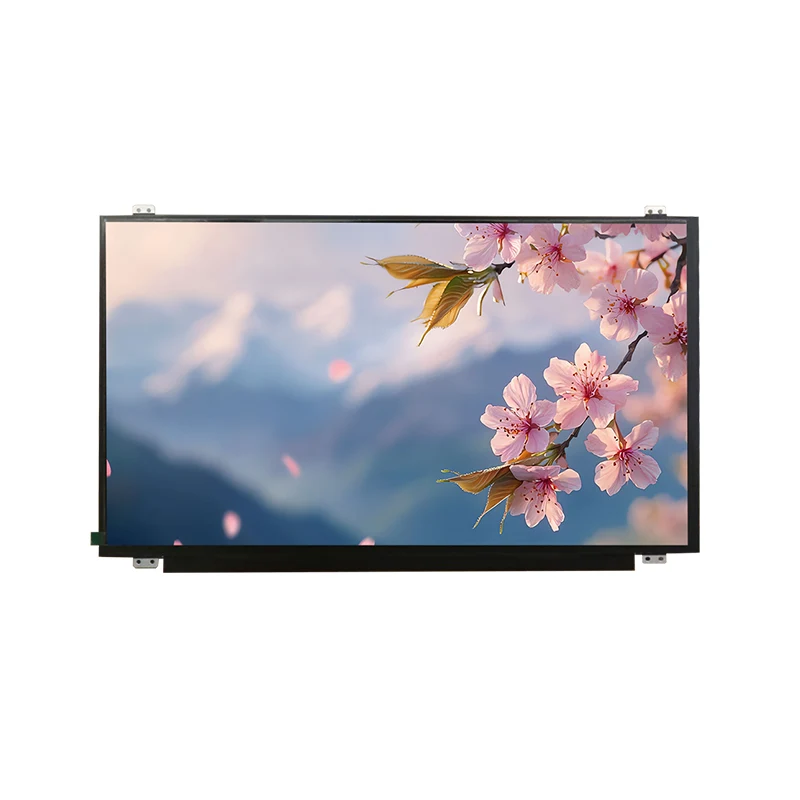

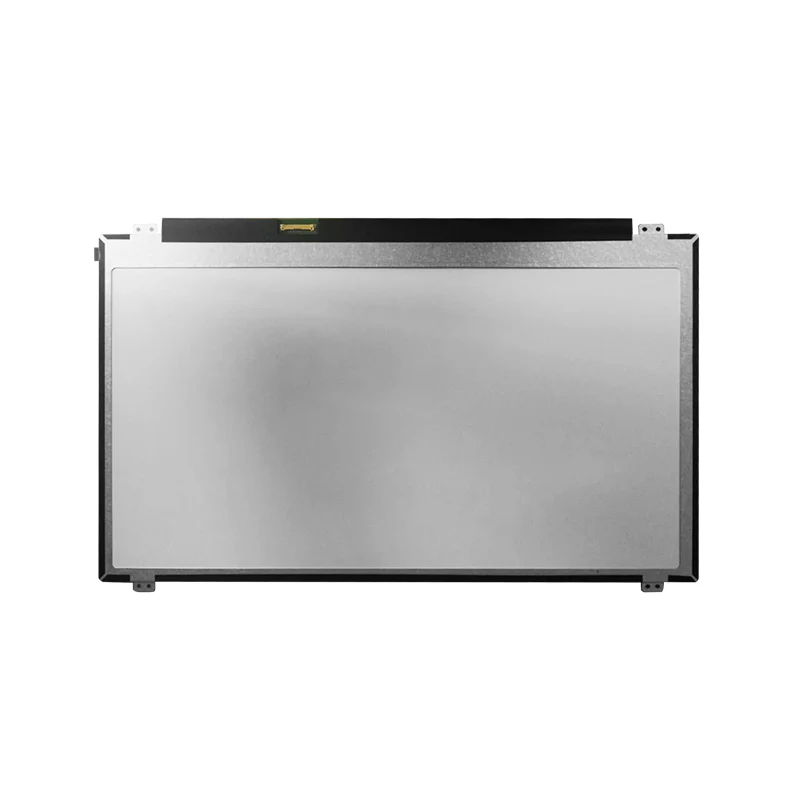

15,6 'HD TIM IPS TFT LCD Screen OMNIBUS

Parameter

Specificatio

DISPONO

15,6 inch (TFT-LCD) / Active Area: 344.16 × 193.59 mm

Resolutio

MCMXX × MLXXX elementa (RGB vertical Stripe)

Interface (principalis)

COPULATOR: 20455-030E, LXVI (I-PEX, XXX-ACUS)
Protocol, II-Lane EDP 1.2 @ 2.7gbps
Power: 3.3v ± X% (Logica), 7-21v (LED lightlight)
Key Pins: Lane0 / 1_P / N, AUX_CH_P / N, Bl_enable, HPD, LCD_VCC, LCD_GND

Interface (tactus)

Non certa PDF

Optical

Luminance: CDXX CD / M² (Typ)
Contra Ratio: M: I (Typ)
Viewing angle: LXXXIX ° (C> X, H / V)
Response Time: 25-35 MS (Typ)
Chromaticity (White) x = 0.313, y = 0.329

Potentiam consummatio

Logica & Driver: 0,561W (Typ)
Backlight (LED) 12V @ 180MA (Typ)

Electrica ratings

Logica copia voltage: 3.0-3.6v
Backlight Voltage: 7-21v
Operating Temp: 0-50 ° C
Storage Temp: -20-60 ° C

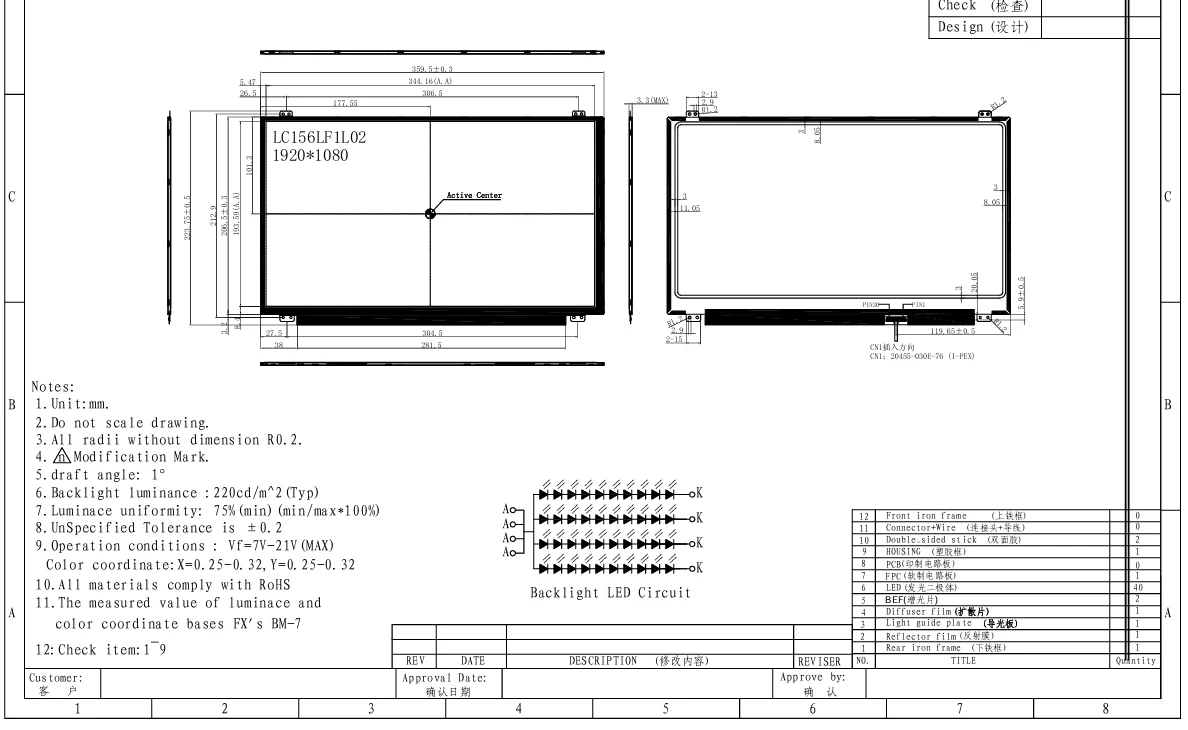

Mechanica

Dimensiones (W × h × d): 359.5 × 223,75 × 3.1 mm (Typ)
Missam: TBD

Reliability

High Tempus Tempus: LXX ° F / 240h
Hill Tempus Tempus: -35 ° F / 240h
Umor Test: L ° C, XCV% RH / 240h
